장비목록


다용도표면분석기()

모델명

Visioscope PC35

장비활용범위

공동활용 / 대여

제작사(국가)

Courage khazaka Electronic GmbH(독일)

장비용도

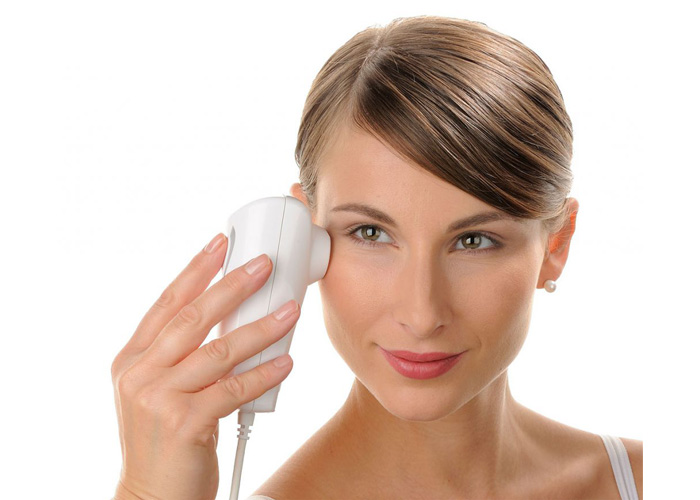

White LEDs 카메라를 이용하여 피부의 다양한 인자(Pores, Spots, Wrinks) 분석에 용이하며 Sebum, Desquamation 측정도 가능하다. 측정값은 컴퓨터 화면을 통해 확인이 가능하며 모든 이미지와 결과 값은 제공된 소프트웨어를 통해 저장된다.

장비사양

1) Dimensions: 12 x 5.5 x 5.5cm
2) Weight: approox. 220g
3) Cable length: approox. 220g 1.5m
4) Port: USB 2.0
5) Power supply: 5 V DC via computer
6) Light source: white LEDs Multifunction camera button changes between polarization(short press) and freezes the image (longer press)
7) Image size: approox. 10 x 8 mm on the screen approx. up to 15-20 x-zoom depending on the monitor size

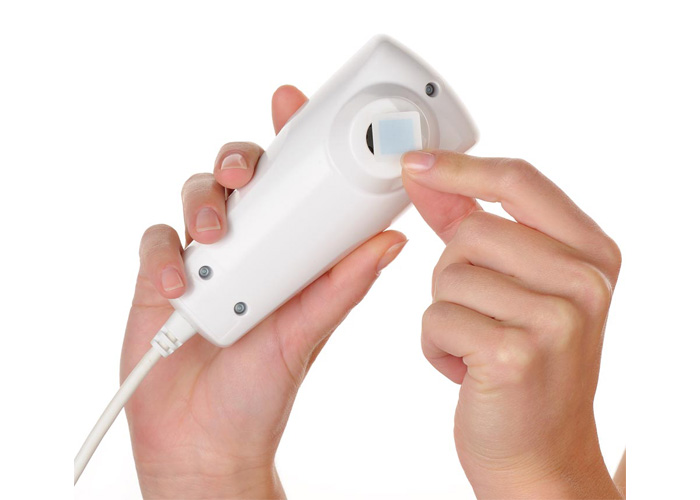

8) SebufixⓇ F16: milky foil the qualitative sebum analysis
    Dimensions : approx. 1.7 x 1.7cm / Thickness : approx 0.2mm 9)

    CorneofixⓇ F20 : transparent foil for the desquamation measurement
    Dimensions :  approx. 2.00 x 1.95cm/ Thickness :  approx 0.1mm
    Foils are completely harmless for the skin
10) Operation conditions: T: 10-40°C, r.H.: 30-70 %RH / optimal: 20°C and 50%RH
11) Storage condition: T: 0-70° C, r.H.: 0-80 % RH
